Beckson Water Pumps
Hand Pump
When repair of irrigation systems necessitates the removal
of water to get to a fitting or valve, the absolute best
way to do this when electrical or mechanical means are
not practical or appropriate is the BECKSON hand pump.

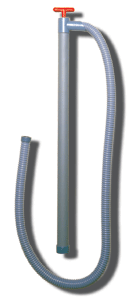

Our most popular is our model 136PF-6, which is easy to
store, transport and a breeze to use.
 |
 |
 |
Stock Number:
124PF |
Stock Number:
224PF |
Stock Number:
136PF-6 |

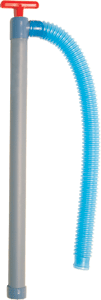

Our 1-1/2" and 1-3/4" diameter water pumps are made
of high impact PVC, are non-sparking, lightweight, need
no priming and have 1-1/4" diameter outlet hoses. We
have a variety of models for a variety of applications.
Their specifications are listed below.
| Stock
Number |
Diameter
|
Length |
Hose
Length |
Volume
|
Price |
| 224PF |
1-1/2" |
24"
|
24"
|
18 oz./stroke
|
|
| 230PF |
1-1/2" |
30"
|
30"
|
22 oz./stroke
|
|
| 124PF |
1-3/4" |
24"
|
24"
|
22 oz./stroke |
|
| 124PF-6 |
1-3/4" |
24"
|
72"
|
22 oz./stroke
|
|
| 136PF |
1-3/4" |
36"
|
36"
|
35 oz./stroke
|
|
| 136PF-6 |
1-3/4" |
36"
|
72"
|
35 oz./stroke
|
|
| 160PF-6 |
1-3/4" |
60" |
72" |
35 oz./stroke |
|
| 172PF-6 |
1-3/4" |
72" |
72" |
35 oz./stroke |
|
Stone Strainer
Stock Number:
STR-1.75
View
Price
This alternative foot valve extends the
life of the 124PF and 136PF series pumps.
The newest aid can replace the standard foot
valve and helps prevent larger stones from
entering and damaging the valves and seals.
it comes with a brass mesh screen, and can
be easily removed, cleaned and reused. |
 |
Intake Extension Hoses
Designed to extend the intake reach of 124PF and 136PF
series pumps. The 1-1/4" diameter reinforced vinyl extension
hose attaches to 124PF and 136PF pumps after removal
of the foot valve. It comes with a strainer to diminish
clogging.
Stock
Number |
Hose
Length |
Price |
| FPH-1-1/4-4 |
4 feet |
View |
| FPH-1-1/4-6 |
6 feet |
View |
|
 |
Pontoon Pumps
For pumping out Airplane Pontoons (Floats) -
For use with EDO or Wipaire Floats - Three convenient
sizes.
 |
| Stock
Number |
Diameter |
Length |
Volume |
| F15PX |
1-3/4" |
15" |
14 oz./stroke |
| F24PX |
1-3/4" |
24" |
22 oz./stroke |
| F36PX |
1-3/4" |
36" |
35 oz./stroke |
To add a float jacket, which prevents the pump
from sinking if inadvertently dropped into the
water, add -FJ to the stock number. (ie: F15PX-FJ)
Model shown on left is F24PX
Model shown on right is F15PX-FJ |
 |

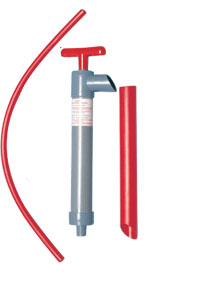

Plumbing
For use in draining traps, drain pipes, or other curved
piping.Also for pumping from tanks or semi-closed places.Three
feet of flexible tube fits in the bottom of pump and extends
down into trap or drain.Outlet tube for directing flow
into pail or bucket.
 |
Stock Number: 12A Diameter:
1-1/2"
Length: 12"
Volume: 8 oz./stroke |
Sprinkler Rotors
Remove water easily from sprinkler rotors. The 9" pump
with 12" rigid stress crack resistant polyethylene dip
tube can be cut to get into hard to reach container.
The 36" vinyl tube directs water away from the head.
 |
Improved and Less Expensive
Stock Number: RP0936
Diameter: 1-1/4"
Length: 9"
Volume: 5 oz./stroke |
Volume
Pumps a quantity of water easily (over 16 gal. per
minute). Flexible tubing in intake end extends to bottom
of liquid to be removed. Flexible tubing in outlet end
allows for directing of flow. 7 ft. on inlet end, 3
ft. on outlet end.
 |
Stock Number:
915F
Length = 24"
Diameter = 3"
Stroke = 14"
Hose ID = 2" |
Volume

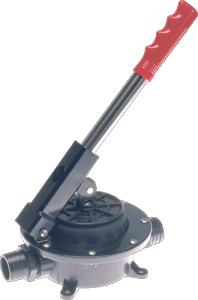

Diaphragm Pump
This pump uses Model FH-1-1/2 " Flexible
Wire-Reinforced Hose (order hose and clamps separately)
pump comes complete with handle storing clips.
 |
Stock Number: DP-2
View
Price / Buy Online
- Dimensions: (Handle Removed)
- Length: 9" Width: 6-1/4" Height: 4-1/2"
- Mounts vertically on a wall or horizontally
on a table.
- Capacity of 28 oz. per stroke or 12 gallons
per minute.
- Made of Corrosion - Proof DelrinŽ Plastic.
|
Replacement Parts
 |
Shafts
124 Series = SHV124
136 Series = SHV136 |
 |
Hoses
124 and 136 Series
3 feet = FH-1-1/4x3
6 feet = FH-1-1/4x6
|
 |
Foot Valves
200 Series = FV-1-1/2
100 Series = FV-1-3/4 |
 |
The red and gray
colors and angled outlet sleeve of these products
are registered trademarks of Beckson.
The "T" shaped pump handle and the color red
applied to the handle are registered trademarks
of Beckson. Reg U.S. Patent & TM Off. |
DelrinŽ is a Registered Trademark of E. I. duPont de
Nemours & Co.
|
