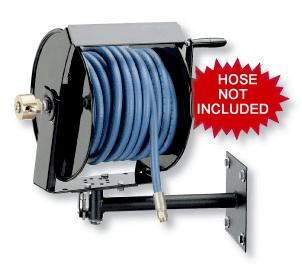

COXREELS SM17-3-250 Compact Swivel Mount (hose not included)
COXREELS SM17-3-250 Compact Swivel Mount (hose not included)
COXREELS SM17-3-250 Compact Swivel Mount Features:
- Hose I.D.: 3/8″ , O.D. 5/8″
- Holds up to 250 Ft of hose
- Pressure: To 4,000 PSI
- Sturdy Single Piece U-Shaped Frame Design
- Unique Hose Control Bar Keeps Hose From Slipping Off The Disc From Any Direction
- Forward-Weighted Design Ensures Rotation In Direction Of Use
- Temperatures –20 degrees F to 300 degrees F
- Direct Hand Crank Action
- Up To 4,000 PSI Working Pressure
- Brass NPT Swivel Inlet Machined From Solid
- Brake Assembly Provides Adjustable Friction To Brake Or Lock The Drum
- Swivel Seals: VITON
- OPTIONAL – 8 Position Swivel Mount Wall Mount Bracket With Lock Pin
COXREELS SM17-3-250 Compact Swivel Mount series hand crank hose reels swivel on demand in the direction your work takes you and locks in eight different positions as desired. Like the 100 Series, the SM Series is lightweight, compact and versatile with a working pressure up to 4,000 PSI. The “U” shaped base and hose control bar together add strength and rigidity while keeping the hose from slipping off the side discs.
The COXREELS SM17-3-250 Compact Swivel Mount has an OPTIONAL SMK-202 wall mount bracket for fixed wall mounting positions.
• This COXREELS SM17-3-250 Compact Swivel Mount is made of Professional Grade Heavy Duty Steel Construction
•Durable Proprietary CPC™ Powder Coat Process
•The COXREELS SM17-3-250 Compact Swivel Mount has Rolled Edges & Ribbed Discs Provide Strength & Safety
•Leading 2-Year Manufacturer’s Limited Warranty
•The COXREELS SM17-3-250 Compact Swivel Mount is proudly Made In The U.S.A. Sold & Supported Worldwide
Our Price: $171.00 Click here to order the SM17-3-250
Availability:: available for order
Product Code: SM173250
Price on the COXREELS SM17-3-250 Compact Swivel Mount subject to change.
